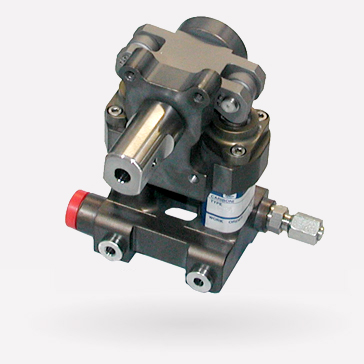

Single speed alternate pump.
Bore&Stroke: 12x16.1 mm
Displacement: 3.6 cc
Dry weight: 1.135 kg (2.5 lbs)
Max pressure: 700 bar (10.000 PSI)
Titanium pistons, 17-4PH stainless steel shaft.

Download Technical Sheet

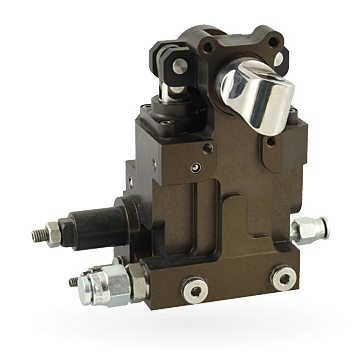

Double speed alternate pump with auto shift and integrated max pressure valve.
Bore & Stroke: 12x16,1 mm (high pressure), 25x20mm (high flow)
Displacement: 3,6 cc (high pressure), 25,1 cc (high flow)
Dry weight: 2,100 kg (4,63 lb)
Max pressure: 700 bar (10.000 PSI)
Titanium pistons, 17-4PH stainless steel or titanium shaft.


All pumps are available with lightweight titanium pressure fittings and aluminium suction and return fittings.

Download Technical Sheet
