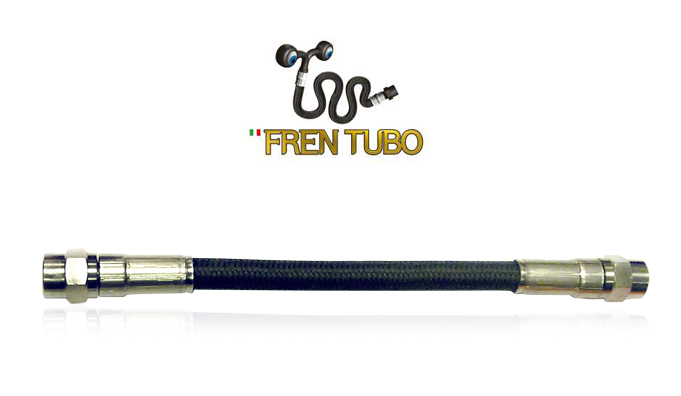

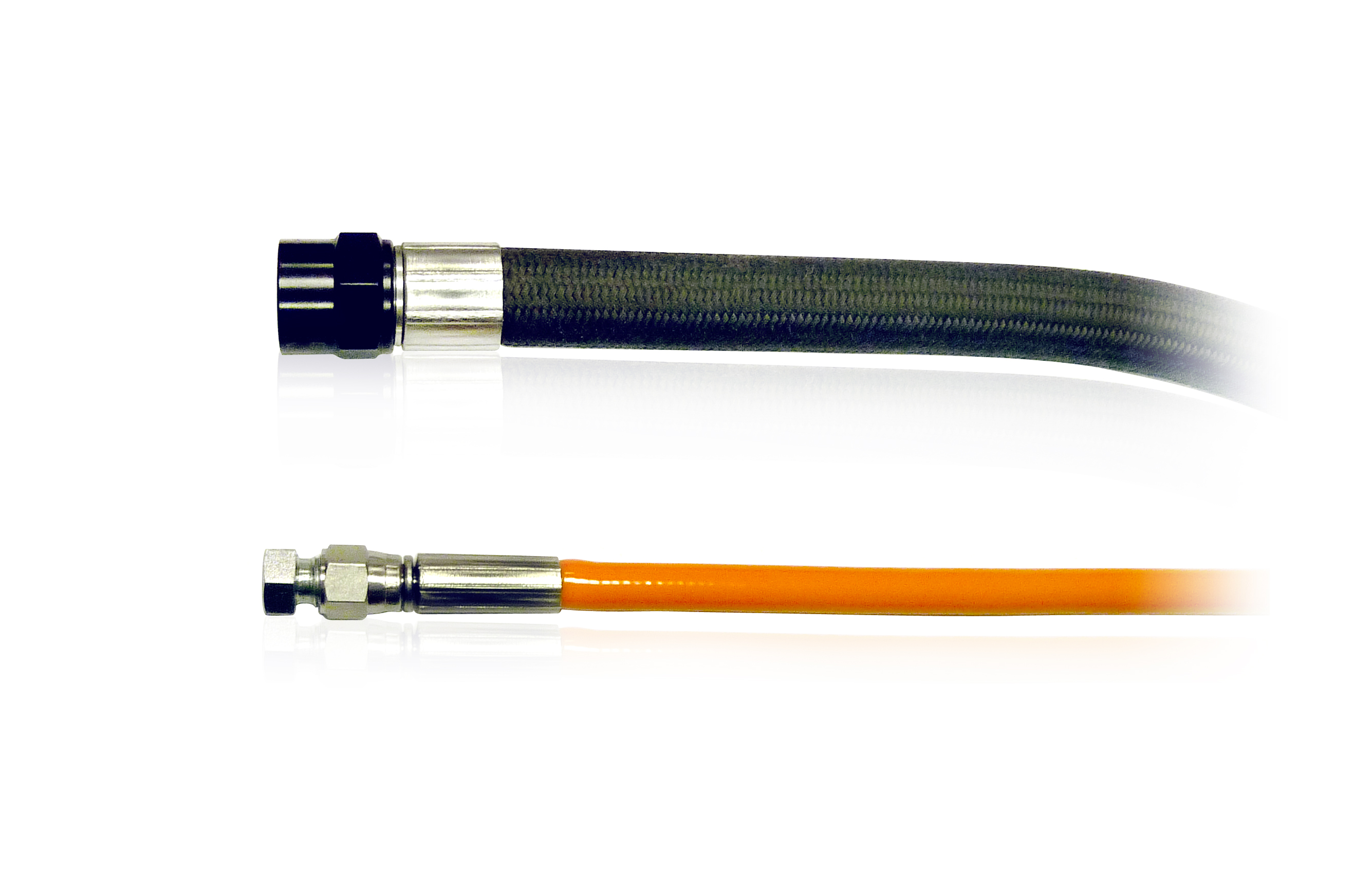

Hoses
| MODEL | I.D. | O.D. | Rmin | W.P. | B.P. | Weight | Fitting |
| mm | mm | mm | bar | bar | kg/m | ||
| A02311-2 T/C 3/16'' | 4,8 | 7,5 | 30 | 700 (10.000PSI) | 1600 | 0,028 | 7/16'' UNF JIC 37° |
| A02312-2 T/C 1/4'' | 6,4 | 10,2 | 40 | 700 (10.000PSI) | 1600 | 0,055 | 7/16'' UNF JIC 37° |
| A02313-3 T/C 3/8'' | 7,9 | 14 | 50 | 500 (7.200PSI) | 1500 | 0,112 | 9/16 UNF - JIC 37° |
| A02315-3 T/C 1/2'' | 8,5 | 18 | 75 | 400 (5.800PSI) | 1200 | 0,135 | 3/4'' UNF JIC 37° |
| A02316-4 T/C 3/4'' | 17,5 | 25 | 140 | 400 (5.800PSI) | 1200 | 0,250 | 3/4'' BSP |
| MODEL | I.D. | O.D. | Rmin | W.P. | B.P. | Weight | Fitting |
| mm | mm | mm | bar | bar | kg/m | ||
| 6700 | 4,0 | 8,0 | 40 | 500 (7.200PSI) | 1500 | 0,04 | 7/16'' UNF JIC 37° |
| 0461 | 5,0 | 11,0 | 30 | 700 (10.000PSI) | 2800 | 0,09 | 7/16'' UNF JIC 37° |
| 2A DN 10 | 10,0 | 19,5 | 152 | 700 (10.000PSI) | 2080 | 0,25 | 9/16 UNF - JIC 37° |
| 2A DN 13 | 13,0 | 22,6 | 203 | 410 (6.000PSI) | 1640 | 0,35 | 3/4'' UNF JIC 37° |
